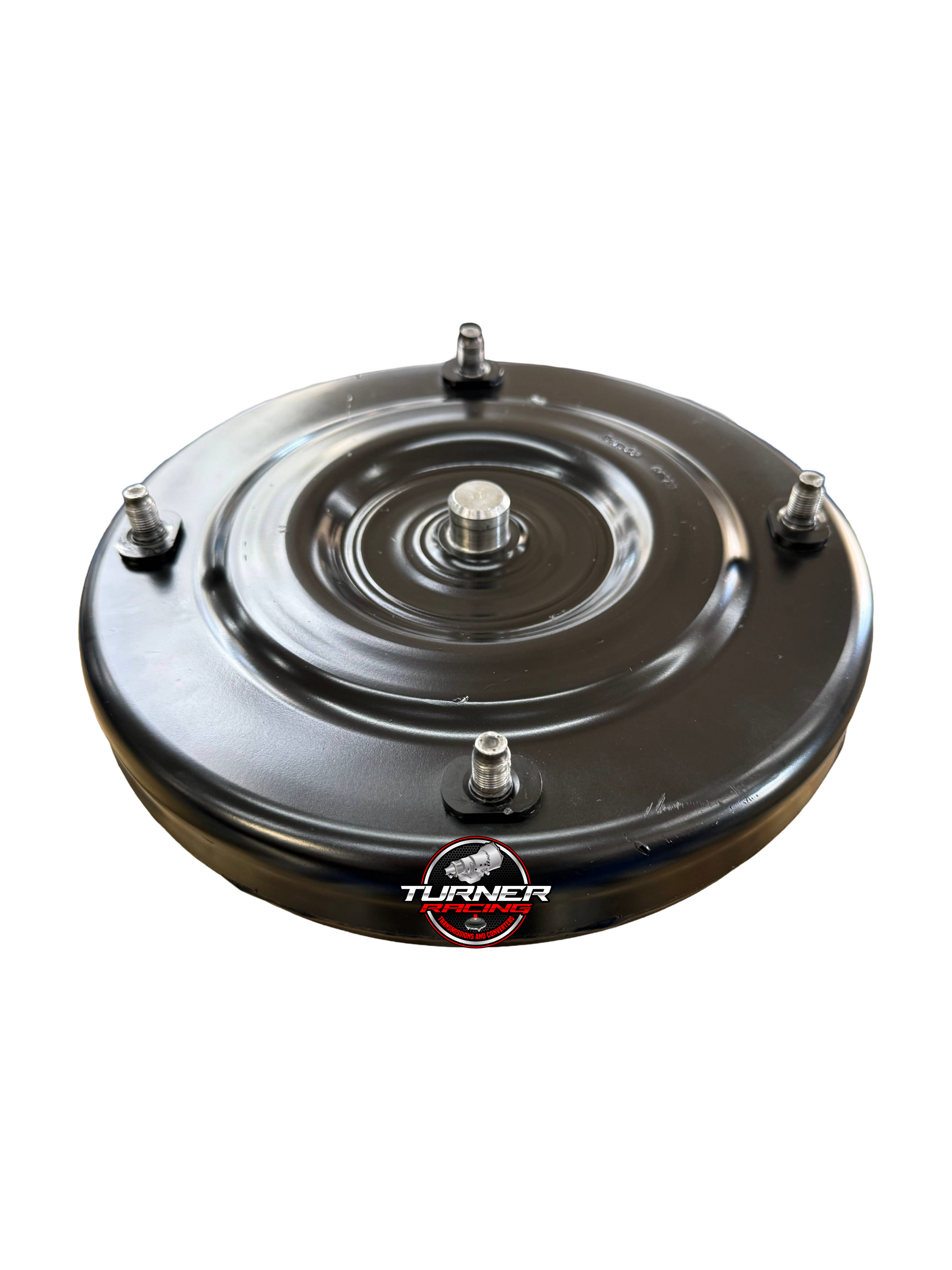

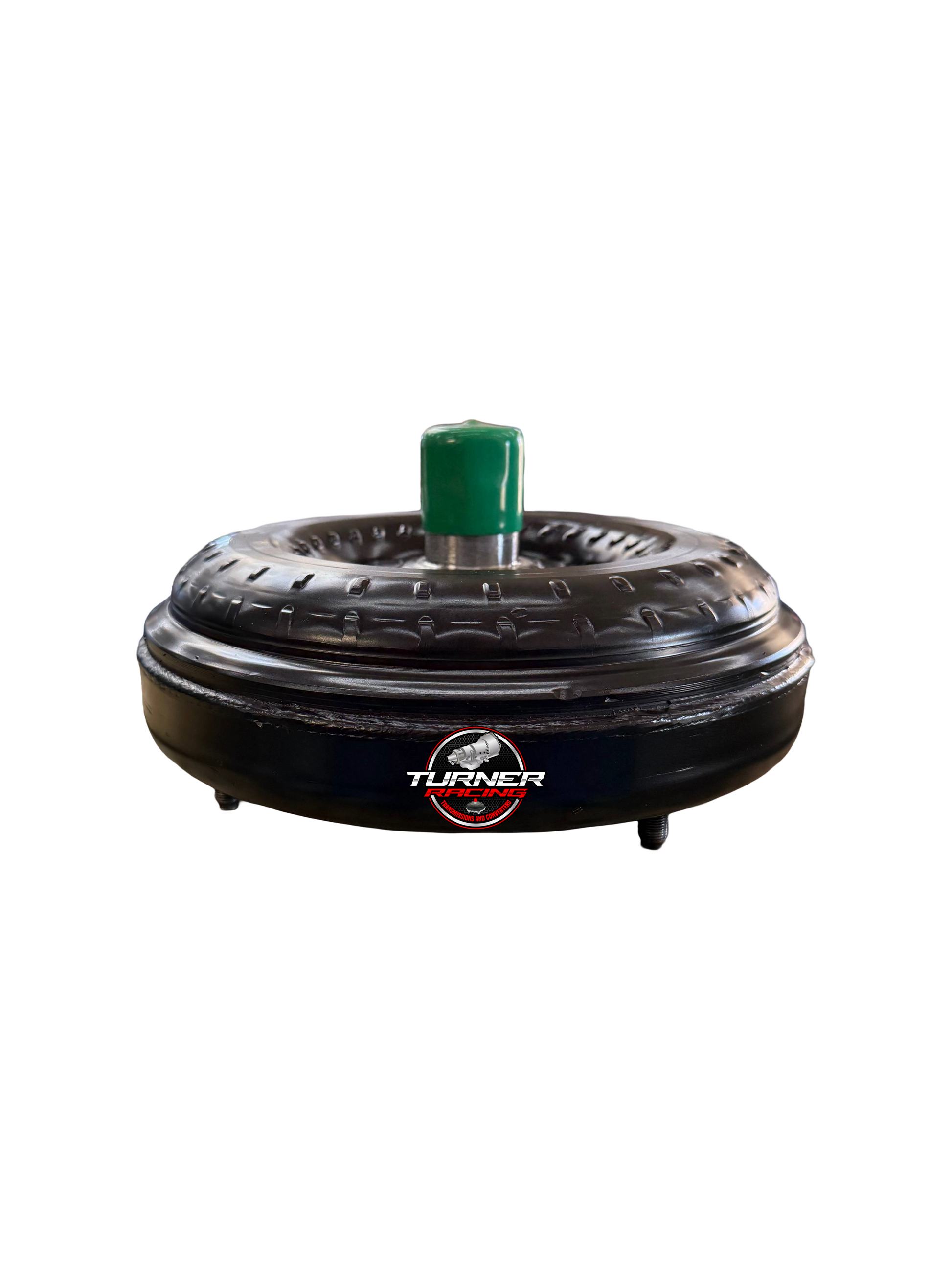

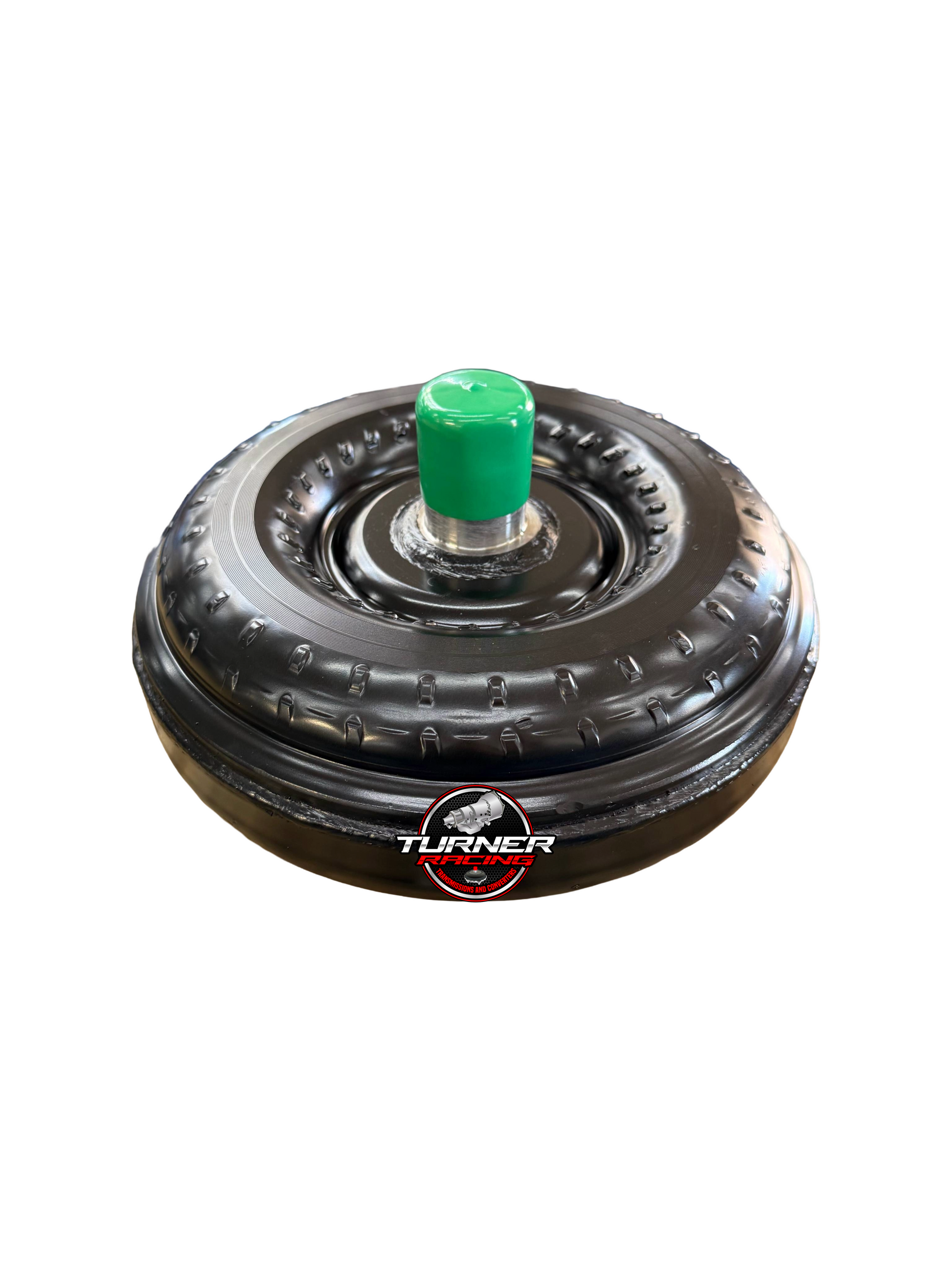

6F35 "K" Code Torque Converter

TRT OEM Series 6F35 Torque Converter

Key Features:

• High Carbon Friction Lining
• 10.750" Converter Diameter
• 4 Mounting Studs
• 8.875" Bolt Circle
• 10mm x 1.0 Thread
• 0.825" Pilot Diameter
• 24 Spline
• Direct Replacement for:
  • K Code
  • Orange Sticker on Both Halves
  • GXFZB Metal Stamp
  • Fits 2.5L Engines 2017-2018 Transit

A core charge of $100 will be refunded upon a correct core being returned within 30 days of purchase.

Review the TRT installation guide before installing your converter, including seating, clearance, mounting hardware, and startup checks.

Read the TRT Installation Guide (PDF)

For application-specific installation questions, contact TRT or call (937) 999-4466.

Check the listed transmission, spline count, bolt circle, and available options against your application. Contact TRT if you need help confirming compatibility before ordering.

Actual flash stall depends on engine torque, vehicle weight, gearing, and the rest of your combination. A listed stall range will not produce the same result in every vehicle.

Send us your combination ↗

To receive your core refund, return the correct torque converter core within 30 days of the purchase date of your new converter.

Preparing your core

1. Install the impeller hub cap. Remove the cap from your new converter and install it onto the converter core to help prevent fluid leakage.
2. Wrap the core. Place it inside a trash bag or similar protective covering to help contain fluid spills.
3. Package securely. Use a sturdy shipping box, such as the original packaging, and secure the core to prevent movement during transit.

Return shipping

You may use any shipping carrier. Return shipping costs are the customer’s responsibility. TRT does not provide a core return shipping label.

Ship your core to:
Turner Racing Transmissions
1000 Webster St
Dayton, OH 45404

Inspection & refund

Once received, your core will be checked in and inspected to verify that the correct core was returned. Incorrect cores are not eligible for a refund. After verification, your core refund will be issued to the original payment method.

Questions about your core? Contact TRT or call (937) 999-4466 before shipping.

Free shipping within the lower 48 states.

Contact TRT for current availability and build time for your selected configuration before planning an installation or race date.

Contact TRT for the warranty terms applicable to this converter and your intended use.

For product questions or help with an existing order, contact our team or call (937) 999-4466.
