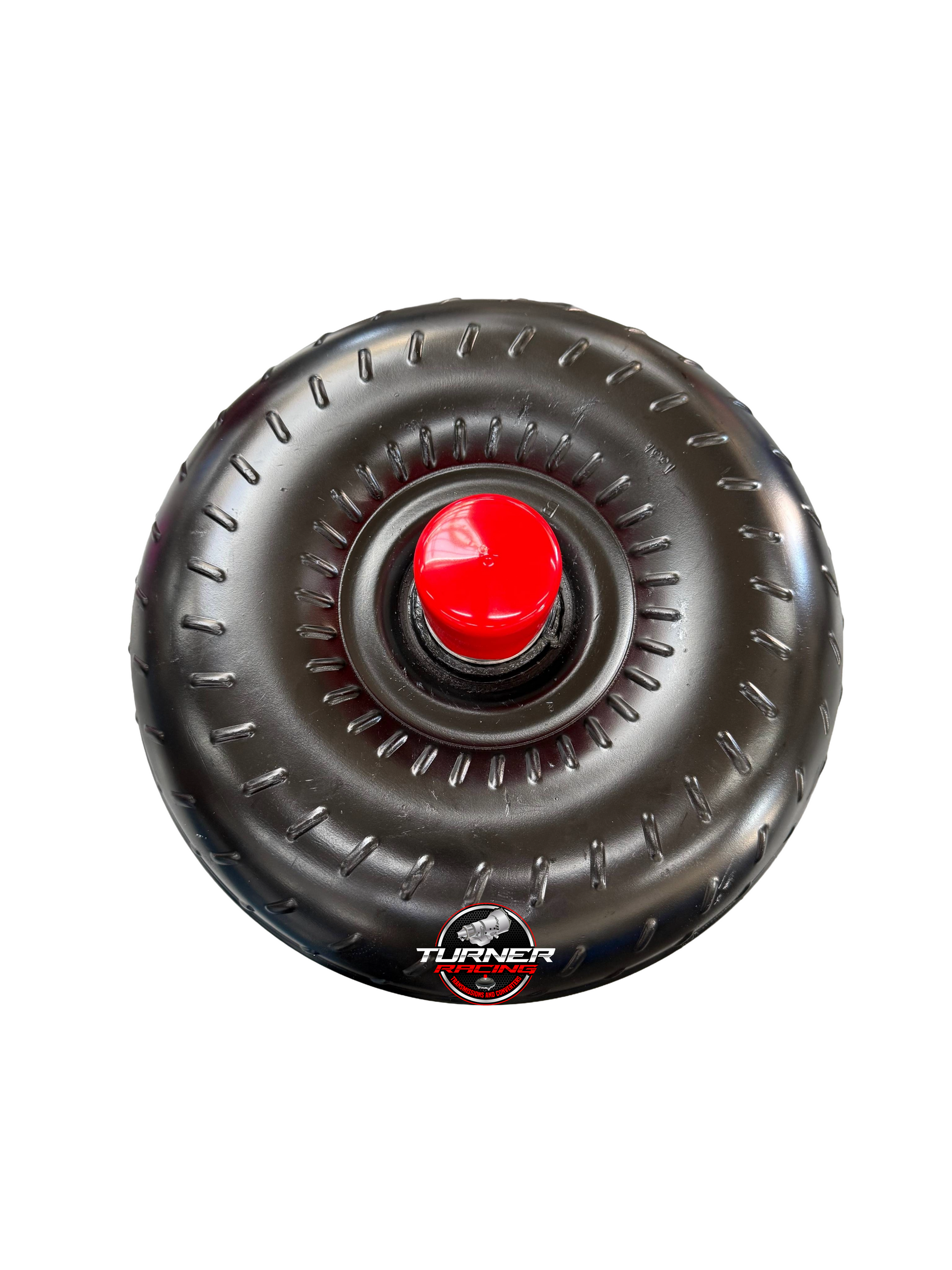

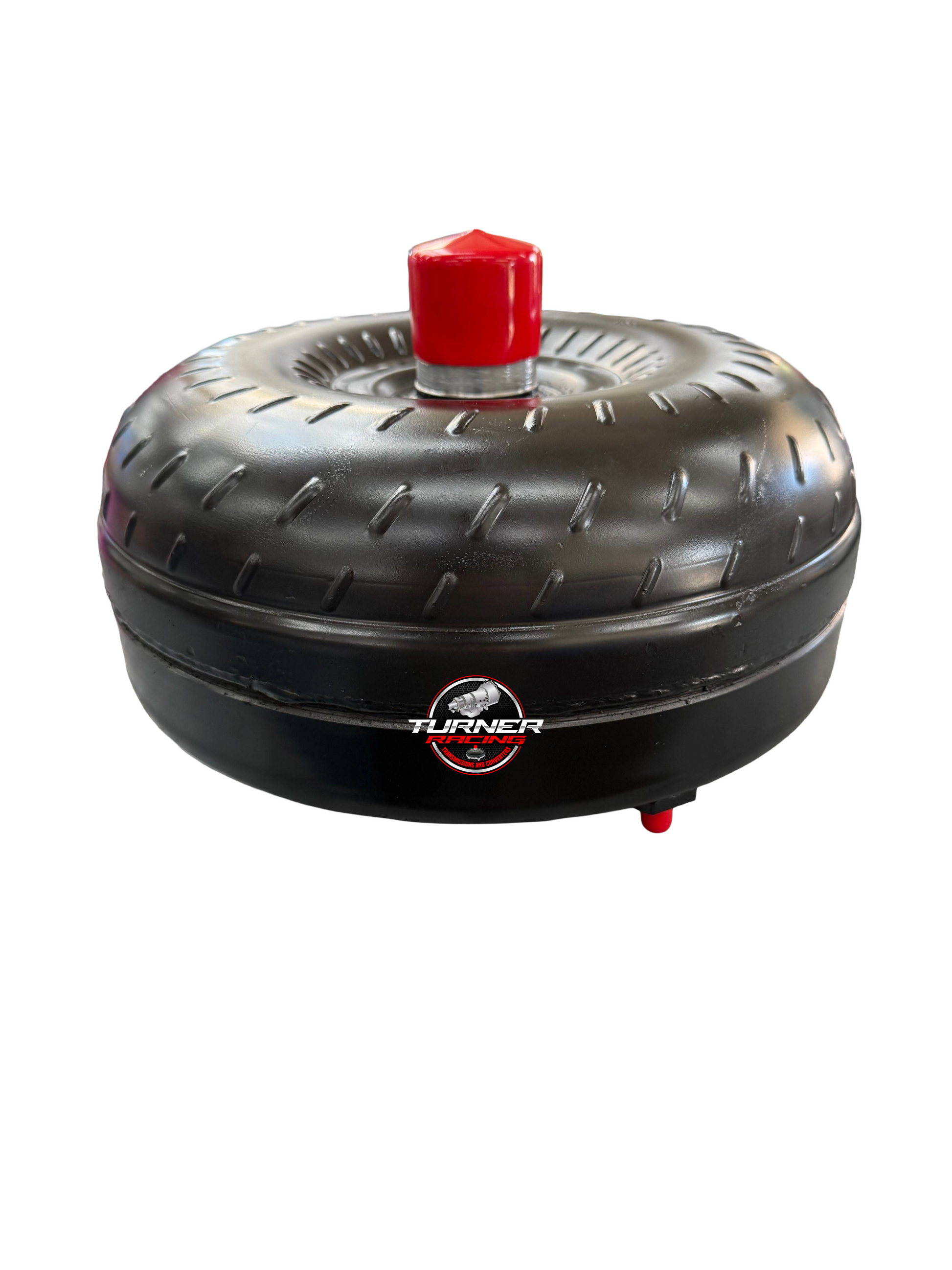

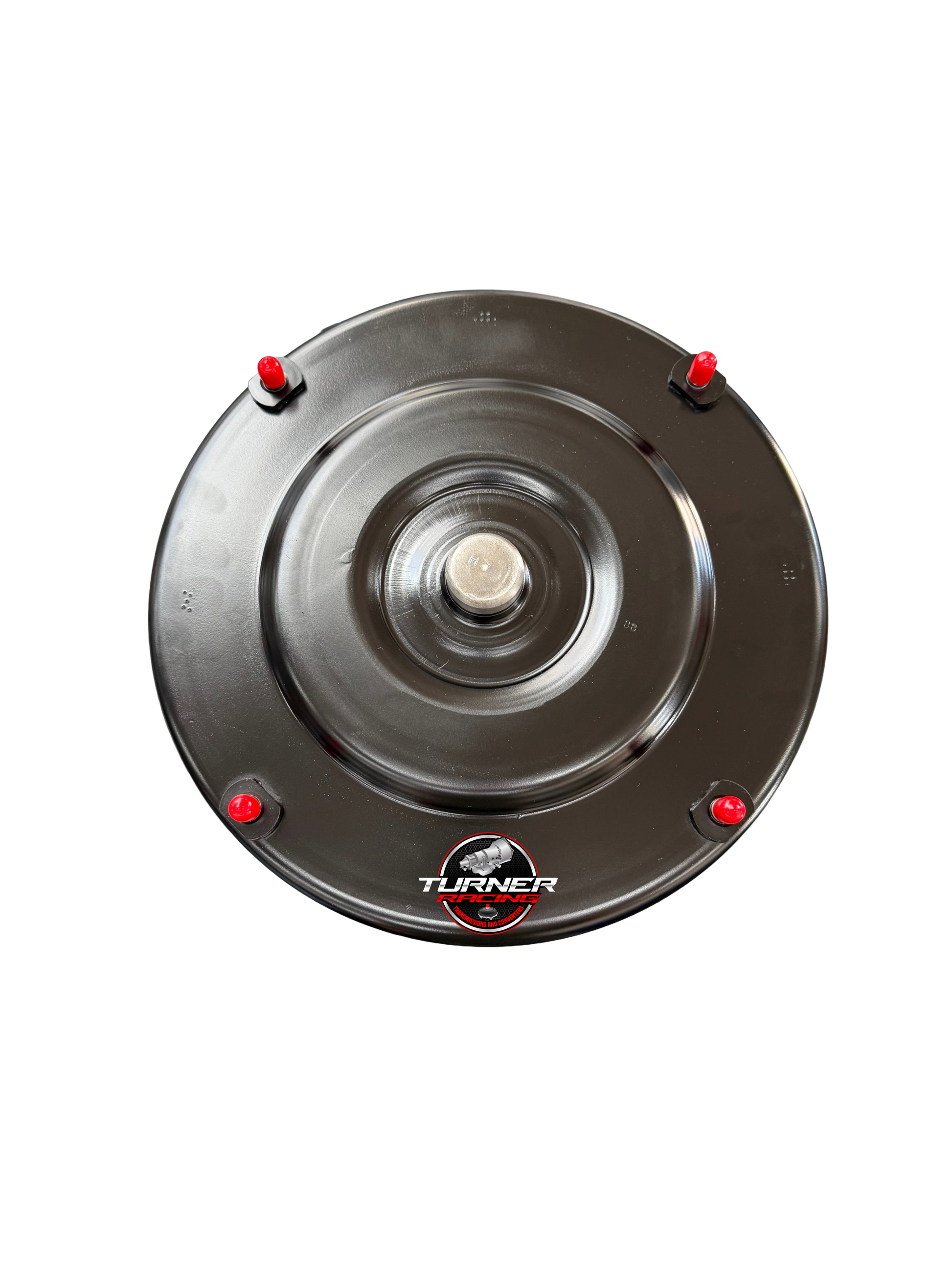

4R70W / AODE 2500 Stall Torque Converter

TRT Street Series Ford AODE / 4R70(75)W / 4R70(75)E 2500 Stall Torque Converter

This 2500 Stall Torque Converter for Ford AODE, 4R70W, 4R75W, 4R70E & 4R75E transmissions is an excellent upgrade for drivers seeking better performance both on and off the track. Built to deliver a stronger launch and smoother power transfer, it’s a favorite choice for Crown Victoria oval racing and other demanding applications. Whether you’re building a dedicated race car or looking for improved drivability in a performance street setup, this converter provides the durability, consistency, and efficiency needed to get the most out of your transmission.

Key Features:

• 31 Spline
• 12.750" Converter Diameter
• 2500 Stall
• 11 3/8" Bolt Circle
• 1.375 Pilot Diameter

Review the TRT installation guide before installing your converter, including seating, clearance, mounting hardware, and startup checks.

Read the TRT Installation Guide (PDF)

For application-specific installation questions, contact TRT or call (937) 999-4466.

Check the listed transmission, spline count, bolt circle, and available options against your application. Contact TRT if you need help confirming compatibility before ordering.

Actual flash stall depends on engine torque, vehicle weight, gearing, and the rest of your combination. A listed stall range will not produce the same result in every vehicle.

Free shipping within the lower 48 states.

Contact TRT for current availability and build time for your selected configuration before planning an installation or race date.

Contact TRT for the warranty terms applicable to this converter and your intended use.
